| Engine | ISUZU VD-6HK1X |
| Engine power | 210 kW |
| Bucket capacity | 1.80 – 2.20 m³ |
| The force for digging the bucket | 213 kN |
| Work table (max.) | 38 100 kg |
| Arrow length: | 6.45 m |
| Shoulder length: | 2.63 m – 3.25 m |
| Maximum reach forward: | 10.66 m – 11.18 m |
| Digging depth: | 6.73 m – 7.35 m |
| Unloading height: | 7.10 m – 7.24 m |
| Width on the chains: | 600 mm |

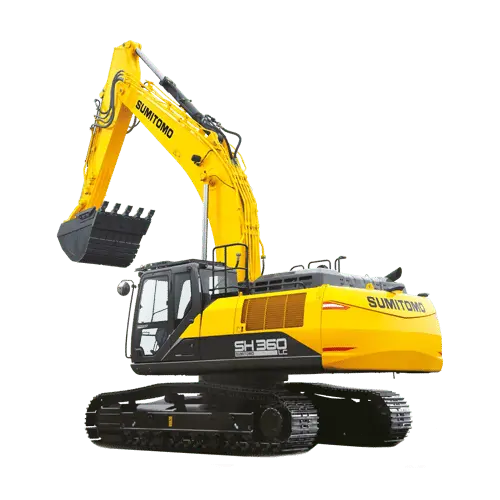

The SUMITOMO SH360LC‑7 tracked excavator is a powerful next-generation tracked excavator designed for maximum efficiency, economy, and reliability when working in tough conditions. This model combines modern Japanese technology with a robust construction, making it an excellent choice for a wide range of construction and infrastructure projects.
The SH360LC-7 tracked excavator features an advanced exhaust gas treatment system that significantly reduces harmful emissions and meets the world's strictest environmental standards (EU Stage V). The system includes:
This combined system ensures clean exhaust gases, reduces fuel consumption, and supports the eco-friendly and economical operation of the excavator.
The SUMITOMO SH360LC-7 crawler excavator is equipped with the innovative SIH:S α hydraulic system, which reduces fuel consumption and provides precise flow control. The Spool Stroke Control (SSC α) system and the fully electronically controlled hydraulic pump ensure accurate response to load and working conditions.
The machine features three operating modes: SP (Super Power) for fast operations, H (Heavy) for heavy loads, and A (Auto) for economical fuel use. In mode A, six adjustment levels are available, making it easier to select the optimal mode for the specific task.
Additional features such as BES (energy saving during boom lowering), Idle Shut Down, and PTR (pump load reduction) optimize hydraulic power and allow for faster and more efficient working cycles with minimal fuel consumption.
The cabin of the SUMITOMO excavators is designed for maximum comfort and minimal operator fatigue. The armrests are connected to the tilting console, ensuring comfortable and precise control, regardless of the console's position. The air-suspended seat with optional heating, along with the tilting cushion and high backrest, allows the operator to assume an optimal and ergonomic position for long shifts. The spacious cabin with excellent sound insulation and automatic climate control provides a quiet and comfortable working environment, while the new intuitive monitor offers easy-to-understand information for operation and maintenance, enhancing the efficiency and safety of the work process.
The SUMITOMO excavators are designed with a focus on easy maintenance and durability, which are key for the continuous operation of construction sites. All components requiring inspection or replacement are concentrated in a convenient location at ground level, making inspections, AdBlue® refueling, and the replacement of fuel and oil filters easier. The enlarged radiator and oil cooler improve cooling and reliability, while the extended intervals for hydraulic oil changes up to 5,000 hours, along with the high-efficiency return filter, reduce maintenance time and effort. The cabin and floor coverings are easy to clean, and the internal battery disconnect switch ensures safety during servicing. The SCR system and AdBlue® are integrated for safe and environmentally friendly operation, with the monitor in the cabin informing about the level and quality of the fluid, ensuring smooth operation and long-lasting machine efficiency.
The SUMITOMO excavators are equipped with an EMS (Easy Maintenance System), which ensures a longer service life and lower maintenance costs for key joints. The special self-lubricating bushings maintain optimal lubrication of the joints, reduce vibrations, and extend the life of the bushings and pins. The boom and arm have a reinforced structure and optimized shape for greater strength, reliability, and durability in harsh working conditions. The undercarriage has been further enhanced with stronger guide wheels, increased roller diameter, and improved internal seals that enhance resistance to contamination. The linear shape of the upper frame facilitates cleaning of the undercarriage and prevents the accumulation of mud and debris, ensuring a longer service life and reliable operation of the machine even in the toughest conditions.
