Sumitomo SH220LC-7 Crawler Excavator

SUMITOMO SH220LC-7


Engine	ISUZU VD-4JHK1X
Engine power	124 kW
Bucket capacity	0.90 – 1.10 m³
The force for digging the bucket	154 kN
Work table (max.)	22 500 kg
Arrow length:	5.70 m
Shoulder length:	2.40 m – 2.94 m
Maximum reach forward:	9.42 m – 9.90 m
Digging depth:	6.11 m – 6.64 m
Unloading height:	6.58 m – 6.81 m
Width on the chains:	600 mm

Learn more

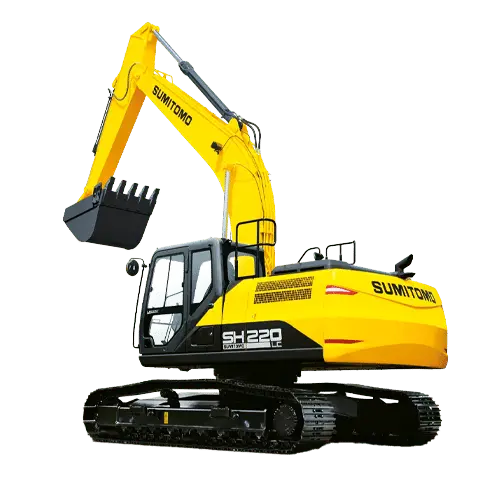

CHAIN HYDRAULIC EXCAVATOR SUMITOMO SH220LC-7

The tracked hydraulic excavator SUMITOMO SH220LC-7 is powerful, reliable, and economical, ideal for all types of construction projects. With a large bucket capacity, impressive digging force, and robust undercarriage, this tracked hydraulic excavator SUMITOMO SH220LC-7 handles even difficult terrains with ease. The eco-friendly engine with low fuel consumption and low maintenance costs make the tracked hydraulic excavator SUMITOMO SH220LC-7 a cost-effective and efficient choice for your site.

Make an inquiry

INNOVATIVE TECHNOLOGIES FOR SUSTAINABILITY

The new seventh series SH220LC-7 chain excavators combine high power with environmental responsibility. The integrated DPF and SCR systems reduce harmful emissions and keep the engine in excellent condition for a longer period. The ceramic filter in the DPF system optimizes engine performance, while the SCR technology purifies gases through a chemical reaction. These solutions ensure lower fuel consumption, less maintenance, and reliable operation under all conditions, without compromising efficiency.

INTELLIGENT HYDRAULIC SYSTEM

The intelligent hydraulic system SHIS Alpha in the SUMITOMO SH220-7 crawler excavators provides optimal power and precise control under all working conditions. Thanks to the advanced electronic control and specially designed hydraulic distributor, the system delivers exactly the necessary energy according to the selected working mode, resulting in high performance and reduced consumption. The two main pumps with variable displacement and regulating system, the maximum working pressure of up to 37.3 MPa with automatic boosting, as well as the efficient drives of the travel and swing systems ensure smooth, reliable, and powerful operation.

INCREASED PRODUCTIVITY AND EFFICIENCY

The SUMITOMO excavators are distinguished by excellent durability and stability during operation, providing a higher level of safety even on uneven and challenging terrains. Thanks to the robust and reliable undercarriage, the machines maintain confident contact with the ground and demonstrate high efficiency when working in harsh conditions.

The combination of high working speed, powerful digging force, and large bucket capacity allows SUMITOMO excavators to achieve greater productivity in a shorter time. The design with a boom and arm intended for heavy applications ensures reliable operation under intense loads and prolonged use.

LOW OPERATING AND MAINTENANCE COSTS

Extended service intervals and the use of high-quality original components contribute to significantly lower maintenance and servicing costs. At the same time, SUMITOMO excavators enhance productivity on the construction site due to their reliability, power, and fast working cycle, leading to a lower cost of excavated material and better economic efficiency of projects.

The comfortable and well-protected cabin creates an optimal working environment for the operator, increasing concentration and productivity during prolonged work. Improved ergonomics and safety systems reduce the risk of accidents and fatigue, which protects the operator's health and limits unforeseen costs associated with downtime and repairs.

HIGH LEVEL OF SERVICE

Daily inspections and servicing of SUMITOMO excavators are easily performed from ground level, saving time and making the operators' work easier. The large fuel tank capacity ensures longer operation without frequent refueling.

If your machine needs repair or diagnostics, we offer professional diagnostics, repair, and maintenance of construction and agricultural machinery at our service base in Sofia. We also have mobile service teams in Sofia, Plovdiv, Varna, and Veliko Tarnovo, ready to respond quickly on-site.
