Sumitomo SH210-7

Make an inquiry Service and spare parts
sumitomo excavator sh210-7
Engine ISUZU VD-4JHK1X
Engine power 124 kW
Bucket capacity 0.90 – 1.10 m³
The force for digging the bucket 154 kN
Work table (max.) 22,200 kg
Arrow length: 5.70 m
Shoulder length: 2.40 m – 2.94 m
Maximum reach forward: 9.42 m – 9.90 m
Digging depth: 6.11 m – 6.64 m
Unloading height: 6.58 m – 6.81 m
Width on the chains: 600 mm

Technical brochure

Learn more
Learn more

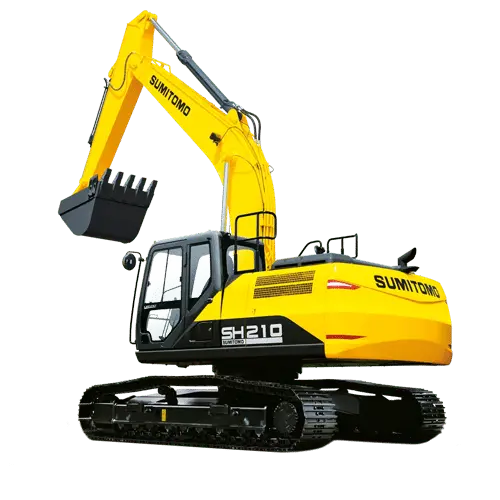

SUMITOMO SH210-7

The SUMITOMO SH210-7 hydraulic excavator is a next-generation machine designed for infrastructure and building construction. Designed by SUMITOMO engineers, it combines high performance, reliability, and efficient operation in tough conditions.

The model is equipped with a powerful and economical engine with low fuel consumption, a robust undercarriage for working on difficult terrains, and excellent performance in terms of speed and digging force. Thanks to its low operating and maintenance costs, the SH210-7 is a cost-effective and reliable solution for any construction site.

Make an inquiry
sumitomo excavator SH210-7_

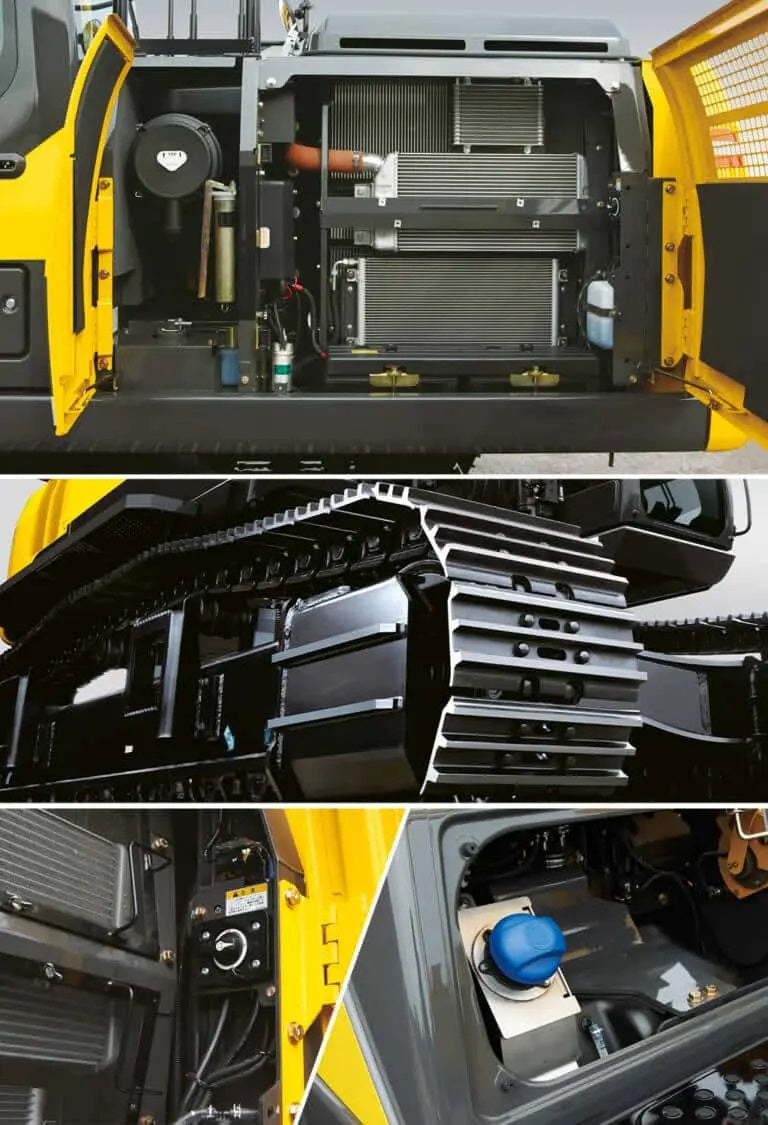

NEW GENERATION ENGINE FOR HIGH EFFICIENCY

The SUMITOMO SH210-7 excavators of the seventh generation offer even higher power, efficiency, and environmental friendliness thanks to the Space 5 Alpha diesel engine and the completely updated exhaust gas treatment system. The machines are characterized by low fuel consumption and significantly reduced emissions, making them environmentally friendly.

The model is equipped with both a DPF filter system with a ceramic filter and an SCR system. The DPF improves the engine's operational efficiency, while the SCR technology reduces harmful emissions through a chemical reaction. Designed for long-lasting and eco-friendly operation, these systems provide self-cleaning, extended service intervals, and lower maintenance costs.

sumitomo excavator SH210-7_

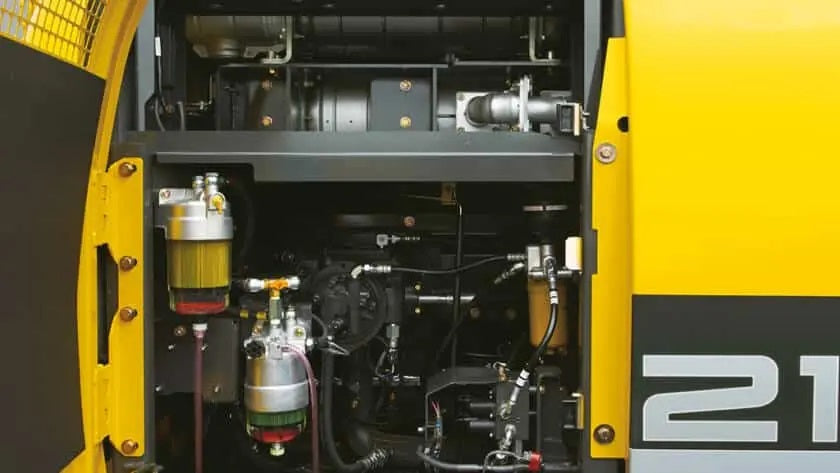

INTELLIGENT HYDRAULIC SYSTEM

The intelligent hydraulic system SHIS Alpha of the SUMITOMO SH210-7 crawler excavators provides high performance and optimal energy efficiency by delivering exactly the necessary power for each operation. Thanks to the advanced electronic control, the system automatically adapts to the selected working mode and load.

Proven technologies such as SSC, BES, AES, PTR, automatic idle and automatic shutdown have been further refined in the seventh series, resulting in lower fuel consumption and higher efficiency. The new hydraulic distributor and modern electronic control system ensure precise operation, reliability, and excellent performance under all conditions.

sumitomo excavator SH210-7_

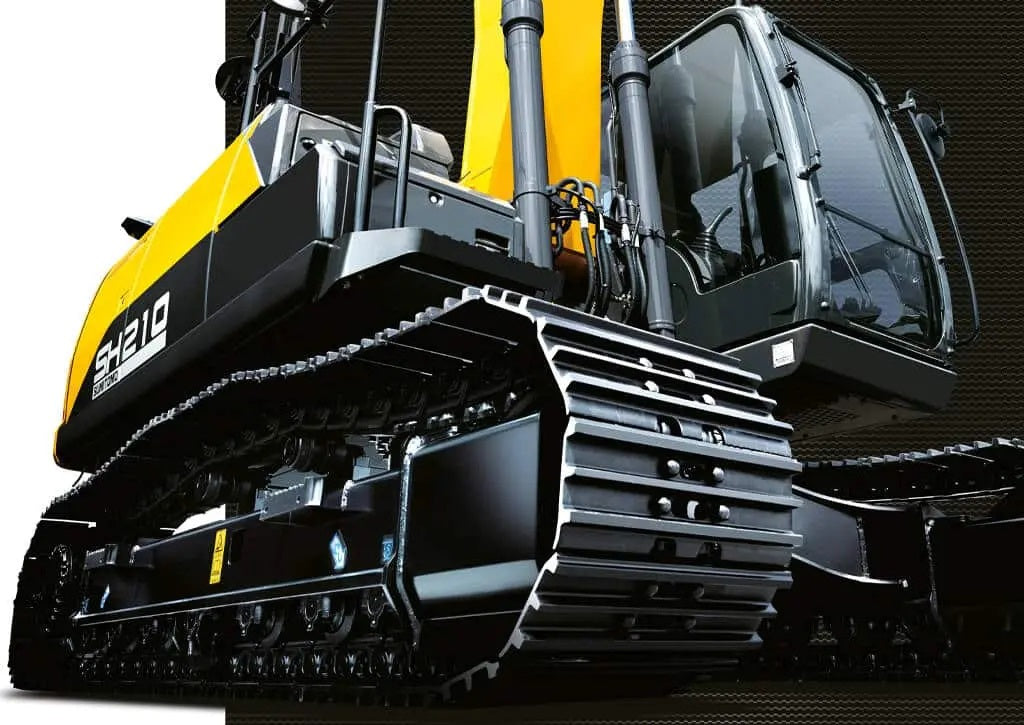

INCREASED PRODUCTIVITY AND EFFICIENCY

The SUMITOMO SH210-7 tracked excavator stands out with excellent balance and exceptional stability on various terrains, significantly enhancing safety during operation. The machine combines high performance with fast and precise working movements, maintaining excellent control even under heavy operating conditions. Thanks to its robust and reliable undercarriage, the SUMITOMO SH210-7 tracked excavator demonstrates excellent passability and resilience on uneven and challenging terrains.

With its remarkable digging power and optimized bucket capacity, the SUMITOMO SH210-7 increases the volume of work done per unit of time. The excavator is designed for intensive operation in harsh conditions and features a boom and arm specifically created for heavy applications and long-term reliability.

sumitomo excavator SH130-7

LOW OPERATING AND MAINTENANCE COSTS

The long service intervals and robust, durable original components reduce your maintenance costs. Additionally, SUMITOMO excavators increase the volume of your construction output through their high performance, productivity, and speed. This way, your costs per ton of excavated material decrease, while the profitability of your projects increases. SUMITOMO excavators enhance operator efficiency thanks to the comfortable and safe cabin, minimizing the risk of accidents that can be hazardous to the health and life of the operator, as well as lead to significant expenses.

sumitomo excavator SH130-7

HIGH LEVEL OF SERVICE

The high level of service support ensures that SUMITOMO excavators will be serviced at every site in the country. SUMITOMO excavators, which are characterized by low operating and maintenance costs due to long service intervals, require minimal downtime combined with regular maintenance at very good prices. Daily inspections and servicing of SUMITOMO excavators can be performed by ground-level operators, and the fuel tank is refueled less frequently due to its large capacity.
