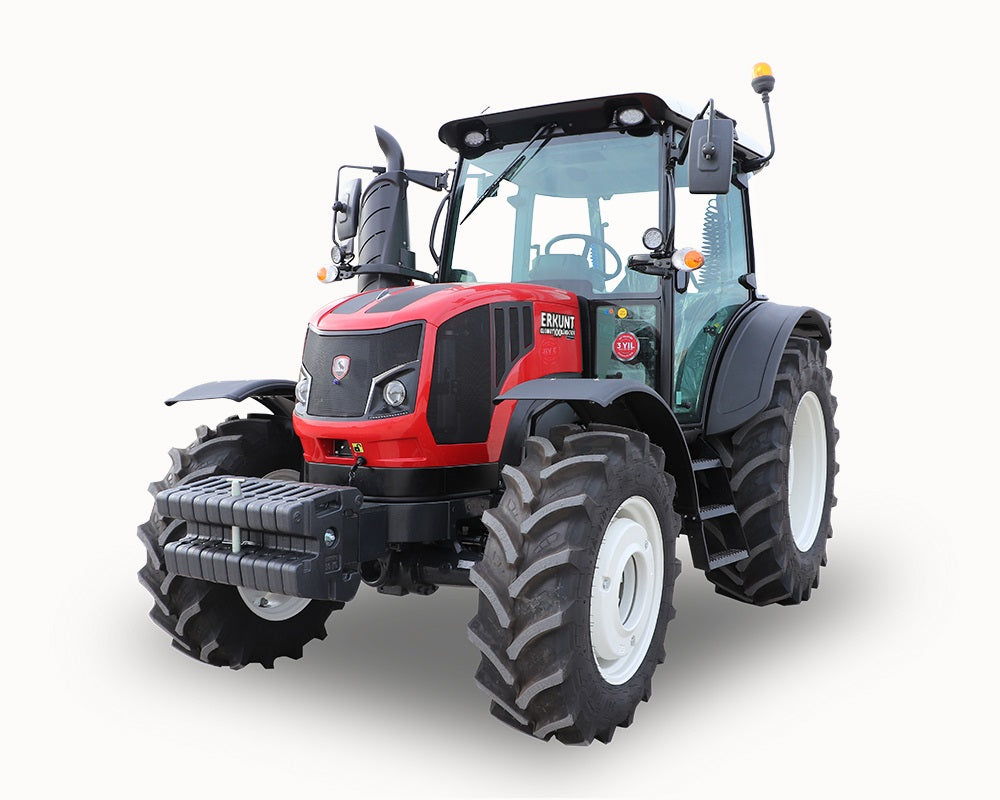

Armatrac 1004 LUX NEF STAGE V tractor
| Parameter | Description |
|---|---|
| Model | 1004 Lux |
| Engine | NEF STAGE-V (ECAPRA) |
| Power | 103 – 111 HP / 75 – 82 kW |
| Engine RPM for maximum speed | 2100 rpm |
| Maximum torque | 428 – 450 Nm |
| Engine RPM for maximum torque | 1400 rpm |
| Number of cylinders / Aspiration | 4 cylinders / Turbo Intercooler |
| Engine displacement | 3500 cc |
| Fuel system | Common Rail Injection |
| Fuel tank / AdBlue tank | 110 liters of fuel + 20 liters of AdBlue |
| Transmission | ZF PowerShift, 16 forward / 16 reverse gears or 16 forward / 8 reverse (PS), mechanical (Powershuttle option) |
The model 1004 Lux is equipped with reliable and efficient engine NEF STAGE-V (ECAPRA), which provides high performance, economical consumption of fuel and compliance with modern environmental standards.
Engine and power
The engine develops power between 103 and 111 HP. (75 – 82 kW) at 2100 RPM per minute. This ensures stable and efficient operation in various agricultural and transport activities.
Rotating moment and efficiency
The maximum torque is between 428 and 450 Nm and is reached at 1400 rpm. This provides excellent traction at lower rpm and more efficient operation under load.
Construction of engine
The engine is 4-cylinder and is equipped with a turbocharger with intercooler (Turbo Intercooler), which improves combustion efficiency and increases power at optimal fuel consumption. The engine's displacement is 3500 cc.
Fuel system
The Common Rail Injection system provides precise fuel injection, lower consumption and reduced emissions. The machine features a fuel tank with a capacity of 110 liters and an AdBlue tank with a capacity of 20 liters, allowing for extended operation without frequent refueling.
Transmission
The tractor is equipped with ZF PowerShift transmission with a configuration of 16 forward and 16 reverse gears or 16 forward and 8 reverse gears (PS). A mechanical transmission with Powershuttle option is also available, which provides smooth shifting, better control and high efficiency under various working conditions.
