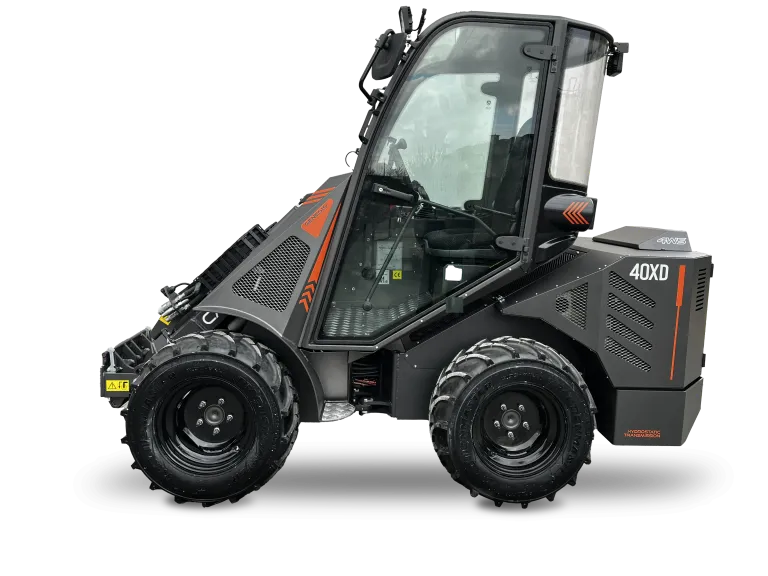

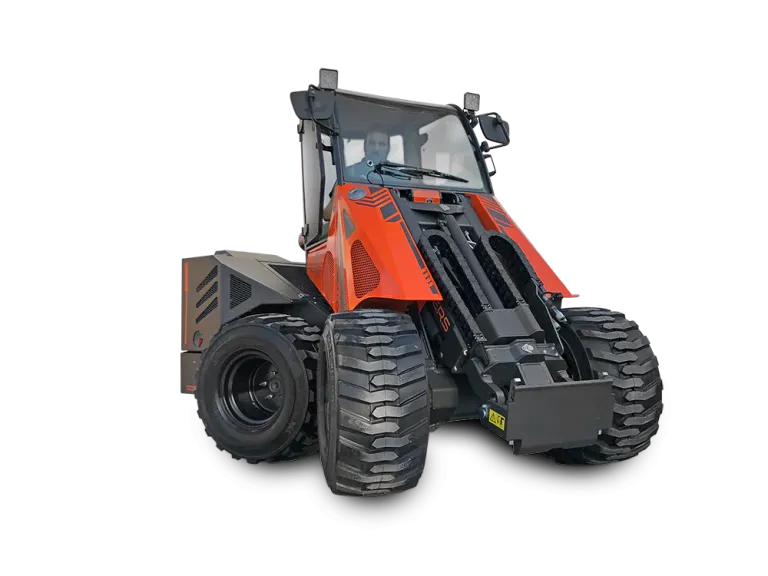

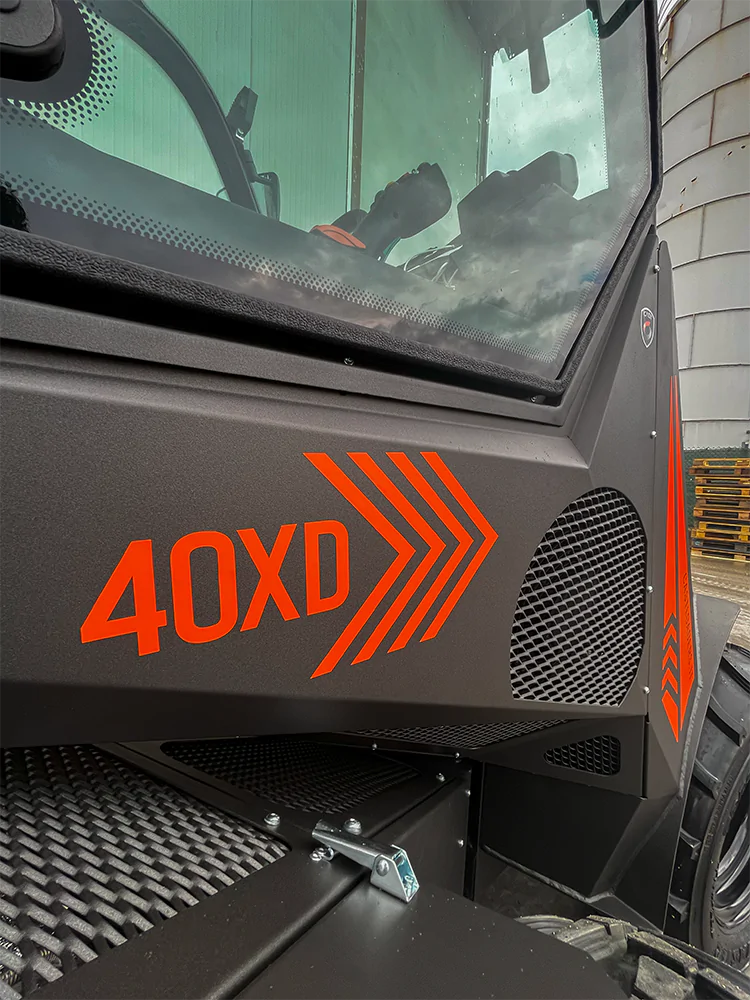

Cast Genesis 40XD Mini Loader
The Cast Genesis 40XD mini front loader is developed for applications where standard compact machines are no longer sufficient. This is a model aimed at intensive work, heavy loads, and high demands for stability, power, and precise control – without sacrificing maneuverability.
Designed for serious loading

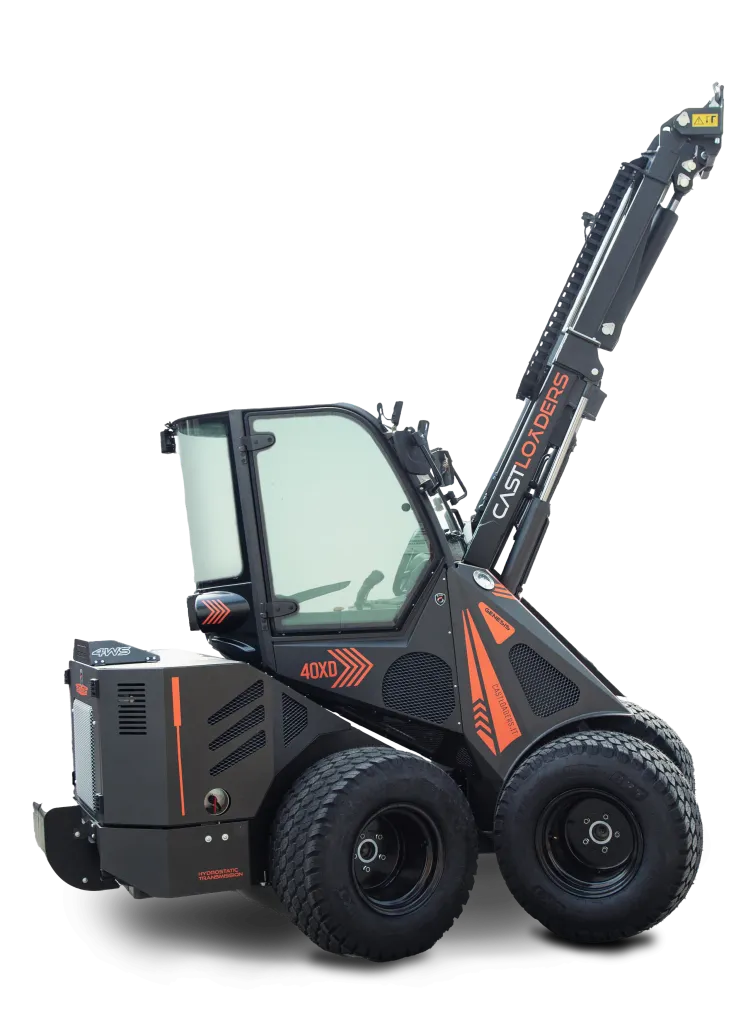

With a tipping load of 1500 kg with counterweights, the Cast Genesis 40XD confidently works with heavy materials and attachments. The Cast Genesis 40XD features extended working geometry and a boom height of 3.30 m.
Yanmar engine for exceptional durability
At the heart of the machine is the Yanmar 3TNV88C diesel engine with a power of 38 hp. It provides stable traction under heavy loads, smooth power transmission, and reliable operation even during prolonged working cycles. Its design is tailored for harsh conditions and intensive use.
Hydraulics designed for professional equipment
The hydraulic system with a flow rate of 66 l/min enables operation with more complex and energy-intensive attachments. Reactions are quick, movements are controlled, and efficiency remains high even when using multiple functions simultaneously.
Full traction with hydrostatic 4x4x4 transmission
The Cast Genesis 40XD relies on a hydrostatic transmission 4x4x4, which provides optimal traction and stability on uneven, soft, or slippery surfaces. A working speed of up to 16 km/h allows for quick positioning and better site dynamics.
Impressive towing capability
With a towing capacity of 1260 kg, the machine confidently handles trailers, heavy equipment, and loads that require not just power, but control and stability. This significantly expands its applications beyond standard loading.
Robust construction with optimal dimensions
With transport dimensions of 1300 / 2800 / 2180 mm and a working weight of 2100 kg, the Cast Genesis 40XD offers a solid foundation for heavy work without losing the advantages of a compact format. The balance between weight, dimensions, and design ensures safety in every operation.
Genesis series – when compromises are not an option
The Cast Genesis 40XD is a machine for professionals seeking more than a standard mini front loader. Designed for busy sites and long-term use, this model combines engineering precision, durable construction, and high operational efficiency.
