Sumitomo SH80BS-7

Make an inquiry Service and spare parts
Engine YANMAR 4TVN98CT
Engine power 51.6 kW
Bucket capacity 0.28 m³
The force for digging the bucket 56.90 kN
Work table (max.) 8 720 kg
Arrow length: 3.50 m
Shoulder length: 1.69 m – 2.19 m
Maximum reach forward: 7.09 m – 7.56 m
Digging depth: 4.18 m – 4.67 m
Unloading height: 4.53 m – 4.85 m
Width on the chains: 450 mm

Technical brochure

Learn more
Learn more

SUMITOMO SH80BS-7

The SUMITOMOSH80BS-7 excavator is designed for work in tight spaces and construction sites in populated areas. Its SR-type construction offers a small swing radius for the superstructure and remarkably compact dimensions. The SH80BS-7 model is preferred for excavation work, agriculture, landscaping, forestry, and infrastructure construction, especially for projects in populated areas with limited space. The SH80BS-7, featuring high performance and a new generation diesel engine and technologies, will enhance the profitability of your business thanks to its high speed, productivity, and low operating and maintenance costs.

Make an inquiry

EXCAVATOR WITH RETRACTABLE COUNTERWEIGHT

Impressing with its high performance and speed, the SUMITOMO SH80BS-7 combines a special super-compact design with a remarkably durable and reliable undercarriage and high working speed. The SH80BS-7 excavator features a large bucket capacity and digging force, providing the desired high performance needed at construction sites with tight deadlines.

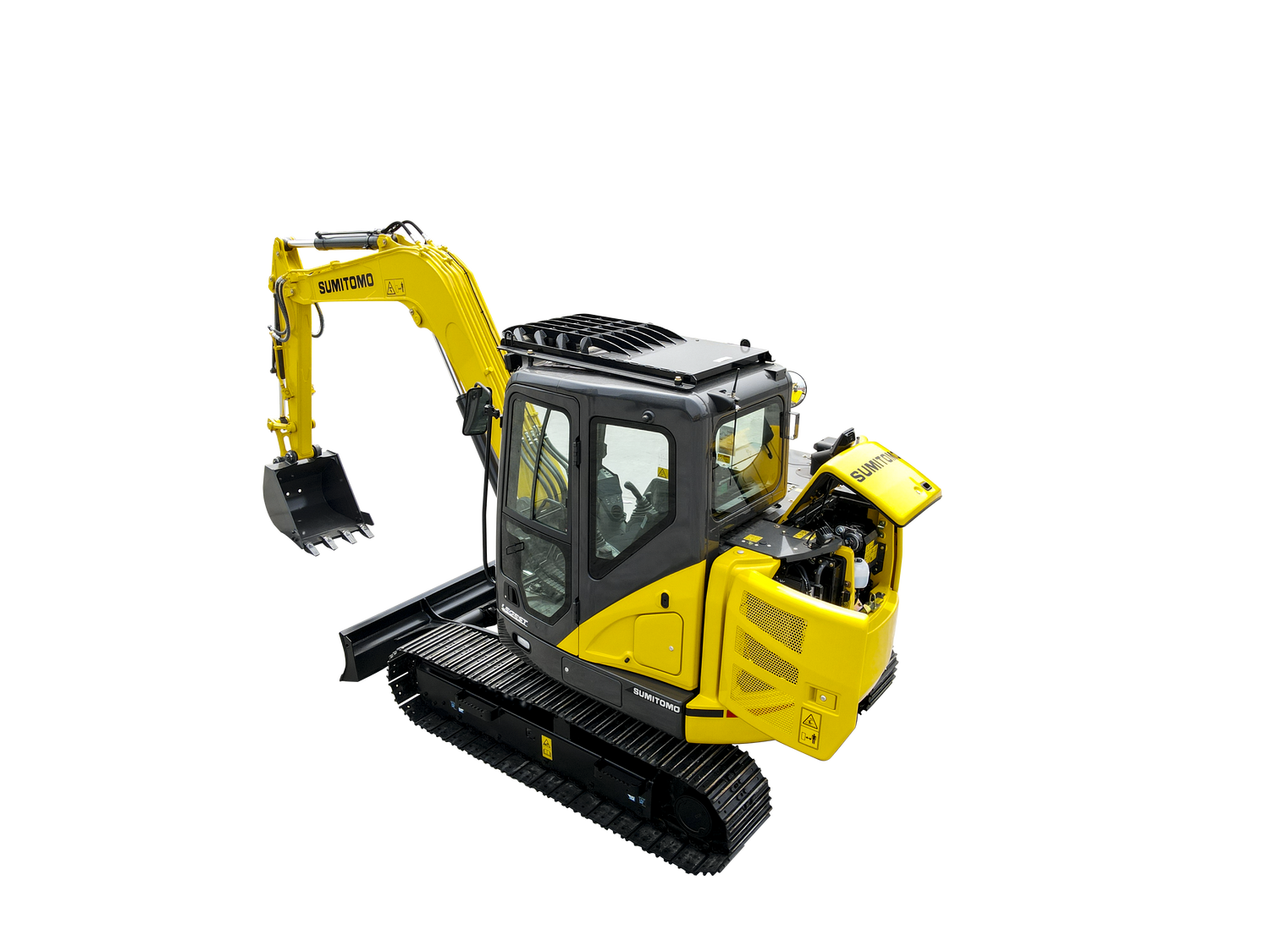

Sumitomo excavator sh80bs-

NEW GENERATION ENGINE FOR HIGH EFFICIENCY

The SUMITOMO SH80BS-7 excavators are now even more powerful, efficient, and environmentally friendly thanks to the Space 5 Alpha diesel engine and the completely updated exhaust treatment system. The new seventh series excavators have low fuel consumption and are gentle on the environment with impressively low emission levels. The SUMITOMO SH80BS-7 excavators feature both a DPF filter system and an SCR system. The DPF system, which includes a ceramic filter, enhances engine efficiency, while the SCR system actually eliminates emissions through a chemical reaction. Since these systems are designed for eco-friendly operation and high efficiency, they offer many advantages such as self-cleaning, long service intervals, and replacement.

INTELLIGENT HYDRAULIC SYSTEM

The SUMITOMO SH80BS-7 excavators are equipped with the intelligent hydraulic system SHIS Alpha. This newly developed hydraulic system delivers only as much power as needed with maximum efficiency. And with the new electronic control, the hydraulic system offers you the highest performance depending on the selected working mode.

Automatic valve stroke adjustment in the main distributor (SSC), Energy saving when lowering the boom (BES), Automatic energy saving (AES), Reduction of load on the main pumps (PTR), Automatic engine idle switching, and Automatic shutdown are systems that were used in the previous series of SUMITOMO excavators (specifically developed for SUMITOMO). Now, in the new seventh series, they have been further improved, and their efficiency has been enhanced.

The efficiency of the excavators is further increased with a Special hydraulic distributor, Electronic control system, and Energy saving when opening the arm. The modern design and robust construction of the intelligent hydraulic system SHIS Alpha, specifically developed for SUMITOMO excavators, fully meet all customer needs for hydraulic power and efficiency.

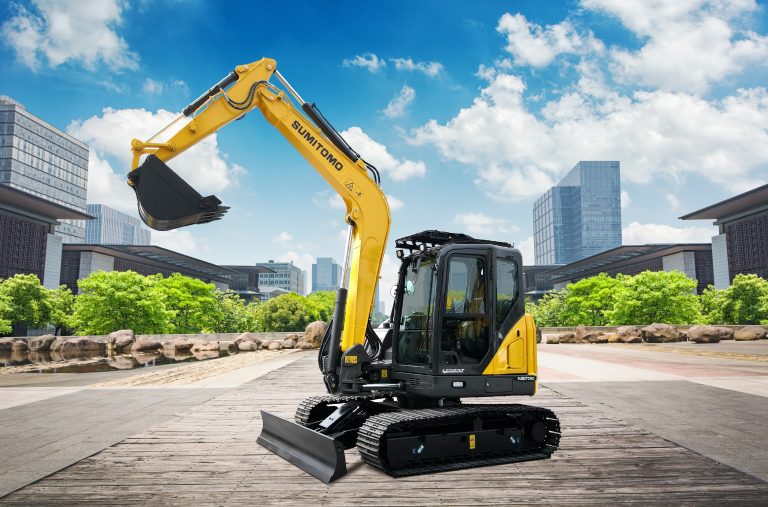

Sumitomo excavator SH80BS

INCREASED PRODUCTIVITY AND EFFICIENCY

Thanks to their excellent balance, SUMITOMO excavators stand very stable on the ground, which increases work safety. Combining high performance with impressive working speed, SUMITOMO excavators perform well on difficult terrain, aided by their exceptionally robust undercarriage.

SUMITOMO excavators, which will increase the amount of work done per unit of time due to their remarkable digging strength and large bucket capacity, are designed for operation in tough conditions, featuring a boom and arm for heavy applications.

LOW OPERATING AND MAINTENANCE COSTS

The long service intervals and robust, durable original components reduce your maintenance costs. Additionally, SUMITOMO excavators increase the volume of your construction output through their high performance, productivity, and speed. This way, your costs per ton of excavated material decrease, while the profitability of your projects increases. SUMITOMO excavators enhance operator efficiency thanks to the comfortable and safe cabin, minimizing the risk of accidents that can be hazardous to the health and life of the operator, as well as lead to significant expenses.
